Exchange 2010 LogoI received a question on if it was possible to decommission a DAG, so that the Exchange 2010 servers would become stand-alone Exchange servers and the databases remain available on one server, freeing up other mailbox servers. I assume the customer has valid reasons for wanting to do so, like downsizing without requirements justifying the DAG. To answer that question: of course that is possible. Now, while many blogs are happy to tell you how to create a DAG there aren’t many on how to dismantle one, so here goes.

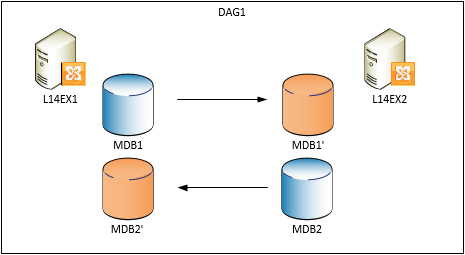

For this blog I use a small setup which consists of a single DAG (DAG1) with member servers L14EX1 and L14EX2 hosting two databases, MDB1 and MDB2; both servers host an active copy.


In this example we’re going to decommission DAG1, where in the end the L14EX1 will host both databases and L14EX2 is freed up.

Before we decommission the DAG, we’ll reorganize the active databases so when removing database copies we’re removing passive copies. We’ll start by checking if the health status of the DAG:

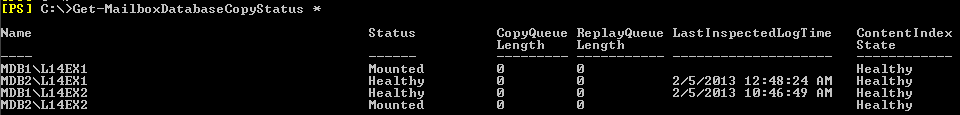

Get-MailboxDatabaseCopyStatus *


We see databases are mounted and copies are in a healthy state. Next, we’ll active the copies on the L14EX1, because we’ll be freeing up the L14EX2:

Move-ActiveMailboxDatabase –Server L14EX2 –ActivateOnServer L14EX1 –Confirm:$false


Verify the databases are now properly mounted on the L14EX1:


Next, we’ll be removing the passive copies hosted on the L14EX2. Use Get-MailboxDatabaseCopyStatus instead of Get-MailboxDatabase because Remove-MailboxDatabaseCopy needs the database name specified together with the server name hosting the copy, e.g. “SERVER\DATABASE”. Note that after removing the copy, the files are still present on the file system which you need to clean up manually:

Get-MailboxDatabaseCopyStatus –Server L14EX2 | Remove-MailboxDatabaseCopy –Confirm:$false


With all passive database copies removed, we can now remove the L14EX2 from the DAG. Note that when removing a non-last member server, the node will also be evicted from the cluster and the quorum will be adjusted when necessary.

Remove-DatabaseAvailabilityGroupServer –Identity DAG1 –MailboxServer L14EX2


Next, do the same thing for the remaining node, the L14EX1. Note that this server still hosts (active) database copies which is ok; the cmdlet will detect this is the last member server of the DAG and will also remove the cluster object.


After the last member server has been removed from the DAG, we now have an empty DAG object which we can remove:

Remove-DatabaseAvailabilityGroup –Identity DAG1 –Confirm:$false

Et voila, L14EX1 now hosts both databases and the L14EX2 is freed up and you can uninstall Exchange from that server if required.


Kindly leave your comments if you have any questions.

36 thoughts on “Decommissioning Exchange 2010 DAG

  1. Pingback: NeWay Technologies – Weekly Newsletter #29 – February 7, 2013NeWay | NeWay

  2. Thank you for simplifying this task. Your example and step-by-step explanation made perfect sense. 🙂

  3. Pingback: Remove a DAG with Active Databases and other Exchange Tricks | Adventures of an Oregon K12 IT Director

  4. Maybe you should just add a note concerning Public Folders that need to be replicated before decommissioning the old server. I know this article is focused on DAG, but forgetting about PF before killing a server can be a problem. Besides this, great article.

  5. Once the servers are stand alone, can I then proceed to uninstall Exchange? I’ve been unable to uninstall the mailbox role because the mailboxes still exist. I used the remove-mailbox PS command and effectively deleted over 780 active directory accounts – that was a HUGE screw-up. We are no longer using Exchange and the servers are ear-marked for another project. I need to decommission Exchange properly so in case we ever want to go back to Exchange, it will be possible to re-install.
    Any extra advice on that set up?

  6. Hi,

    Is it ok to follow this for one server recovery? Actually, We have 2 Node DAG with multi role. No Edge server. Now, we are doing some disaster recovery testing. We did restore one of the DAG member using setup:Recoverserver installation and did clean up second server and removed DAG as well. After that we restored the database from backup to server original location. To mount database, we changed restore database “MasterTyper” from “DatabaseavailabilityGroup” to our server restored server FQDN name. Everything is working fine except our current outlook client is is not able to connect with this. I can configure new outlook profile and its working fine but we need this recovery should work with our current setup. Please note: For this testing, we restored the Domain Controller as well. Please suggest, you can help us to point out cause of this this issue.

    • 1) Why recover from backup – reseed was not an option? (recovered copies are often too outdated, causing divergence and reseeding anyway);
      2) What doesn’t work – is the certificate reinstalled?
      3) At what moment – and why – did you restore the DC?

      • Here is brief steps we followed for testing environment.
        – Restored one of DC from Backup (2 Week Old) and transferred all roles to make it workable
        – Restored one of DAG member which had active copies from Backup(latest backup)
        – Clean up like removed database copy,removed other member server from DAG, removed DAG completely.
        – Point the casarray name to recovered server IP
        – Restored the database to original location (Recovered server) thorough Symantec backup Exec.
        – Changed “MasterType” and “MasterserverorAvailabliltyGroup” to “server” and “FQDN of Recovered server”
        Then we did following testing –
        -Outlook new profile creation (Successful)
        -OWA access (Successful)
        -Autodiscovery (Successful)
        Now, we thought to connect one of production environment client to this testing environment but it failed to connect. I hope this will enlighten you more about my query.

        Please suggest.

    • DAG-wise none; PF are no part of DAG in Ex2010. So, the general decommissioning of Public Folder databases apply (if you want to get ride of one), or move contents to another database by replication contents.

  7. Hi Michel,

    Do you need to stop or ‘pause’ the copying/syncing of the databases across the servers before deleting the passive copies? Otherwise won’t Exchange recreate them and start replicating across once you’ve deleted them?

    Many thanks

    • You’re removing the passive database copy, which removes the (logical) copy (and thus stops replication); it doesn’t mean remove the files of the copy. Files will still be there for you to clean up.

  8. Hi I have two servers in my dag I want to remove one and then turn the other into single server instead of dag the problem when I try to remove the passive server it say it is activated set for data center mode and I cannot remove it
    what am I doing wrong
    Thank you

  9. Thanks to you for writing this and thanks to Google for bringing me here! Really appreciated your instruction and insight.

    BTW… this worked fine in Exchange 2013.

  10. Hi, I have a case like that, to convert a DAG to stand-alone server.
    I concern if I can remove DAG using this procedure during working hours or mailboxes will be inaccessible for a while, as the mailbox access endpoint will change from DAG name to standalone server.
    Thank you

      • Yes I know that clients use CAS for connection. Question was regarding connectivity between CAS and MBX.
        Anyway I have already done the decommission following you instructions without any problem.
        Thanks you again.

      • What about the applications pointing to cluster IP? after removing the DAG, stand alone server will not have cluster IP anymore and SMTP connectivity will loose till we add another secondary IP (cluster IP) on network interface or change the IP to cluster IP. I guess. Is it right solution? Is there any better way to handle this. Please suggest.

          • Thanks Michel. we don’t have loadbalancer. We have 2 node DAG and i have already removed one node yesterday. Now, I want to remove DAG to make server standalone. this server has two IP now, one cluster and another server IP. Our applications are point to cluster IP, which is going to remove after DAG and Cluster.

            • Actually clients connected to CAS or CAS array, except PF access.
              RPCClientAccess parameter of databases instruct clients for connection point
              If you don’t have external NLB and use WNLB, you should have separated CAS servers. (2 clusters on the same system not allowed)
              So you don’t have to repoint clients to any member of DAG. If you split and CAS cluster then you have to repoint CAS array name to remaining CAS server

              • My CAS arrary is already pointing to cluster IP. It’s like casarray,clustername both are pointing to same ip. Now, my question when i will delete the DAG, cluster feature will remove automatically or i have to remove manually? If, its remove automatically, server will have only one IP which will be different than the CASarray IP, so client will lost connectivity till I put casarray IP as a secondary IP on the server interface. Correct me if i am wrong.

                • I cannot imagine how DAG based on MS failover cluster have same IP with CAS array based on NLB. CAS based on IIS witch is not MSCS aware. DAG VIP is a property of DAG configuration. CAS array VIP is a property of NLB based cluster. Clients look for RPCclientaccessserver parameter to locate the DNS name of CAS server and not for DAG IP. I have already decommissioned a DAG using the procedure of this article without any problem.

  11. Hi,
    Does this procedure work if the server being removed is the DAG/cluster PAM. I need the SAM to become the stand alone hosting the database.

    • The PAM is the one owning the cluster quorum; so the last node standing will always be a PAM, and every node you remove from the DAG before that is or will become SAM. You can move the PAM role using Move-ClusterGroup.

  12. what happens when i dos’t have a connection to second dag nodes because physical damage on remote sites? i need to mount the local copy on the working site but i got an error because no connection to other damaged cluster nodes?
