Exchange can’t start due to misconfigured AD sites

Posted on June 18, 2012 by Michel de Rooij

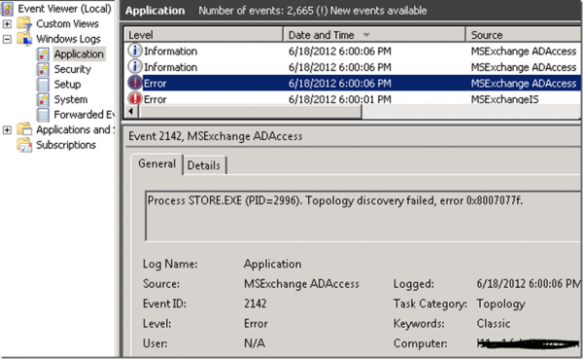

Recently, a customer had issues with their Exchange server which didn’t start properly after rebooting. After checking out the Eventlog, I noticed the it was full of messages, generated by all services. The most interesting events were the ones generated by MSExchange ADAccess:

MSExchange ADAccess, EventID 2141
Process STORE.EXE (PID=2996). Topology discovery failed, error 0x8007077f

MSExchange ADAccess, EventID 2142

Process MSEXCHANGEADTOPOLOGYSERVICE.EXE (PID=1760). Topology discovery failed, error 0x8007077f

Also, the results of the active directory discovery process generated every 15 minutes, which are normally logging in event 2080, “Exchange Active Directory Provider has discovered the following servers with the following characteristics”, was missing.

Note that because the system could start the Microsoft Exchange Active Directory Topology service (until it failed and is restarted by dependent services), Exchange’s other services were also triggered, leading to almost indefinitely restarting services as configured in their corresponding service recovery actions sections.

Now, since I had connected to a domain controller using an RDP session from my client, and I was able to connect to port 389 (Global Catalog) from Exchange using LDP, so communications looked ok. Then, I switched to Active Directory Sites and Services:

As you can see from the shot, here was a potential cause of the problem. First, there was a site without domain controllers. Second, there were no subnets defined. So, in this situation, it is undetermined in which site Exchange is located.

When a system can’t be determined to which site a computer belongs, the function DSGetSiteName, used to retrieve the current site, returns an error 1919 0x77f (ERROR_NO_SITENAME). Consequently, the Exchange Active Directory discovery process fails and eventually Exchange fails. You can inspect the current discovered site using nltest /dsgetsite or by having a peek in the registry at HKLM\System\CurrentControlSet\Services\Netlogon\Parameters\DynamicSiteName.

Now, to solve the situation we have three options:

Making the site association static using a registry key, which isn’t a best practice.If you must, set registry key HKLM\SYSTEM\CurrentControlSet\Services\Netlogon\Parameters\SiteName (REG_SZ) to the desired site name;
Adding proper subnet definitions;
Remove the empty site definition.

It turned out the empty site was a place holder for a future site, so we went with the option of adding proper subnet definitions. After adding subnet definitions, like you normally should when working with multiple sites, including the scopes where the Exchange servers and domain controllers were located, and associating it with the main site, things started working again.

Note that the NetLogon service determines site association membership at startup and every 15 minutes. The Microsoft Exchange Discovery Topology service maintains this information by caching the information in the msExchServerSite attribute of the Exchange server object, in order to reduce load on active directory and DNS. Therefor, you might need to wait or restart Microsoft Exchange Discovery Topology if you want to renew site association membership.

Windows Server 2012 RC Version and Levels

Posted on June 11, 2012 by Michel de Rooij

A quick post on the possible schema version and functional levels introduced with the release of Windows Server 2012 RC.

The schema version of a Windows Server 2012 Release Candidate forest is 56 (was 52 in the Windows “8” Beta). For more information on Active Directory schema versions and how to read this information, consult the AD Schema Versions page here.

Also, the msDS-Behavior-Version attribute of Windows Server 2012 domain controllers is set to 5, which is the same number as the Windows “8” beta version number. For more information on Active Directory Functional Levels and how to read this information, consult the AD Functional Levels page here.

Retrieving DCs functional capabilities

Posted on March 8, 2012 by Michel de Rooij

While constructing a page for the forest and domain functional levels, and the maximum functional level for domain controllers, I wanted to show an example of how to retrieve this Active Directory attribute for all domain controllers. You could for example incorporate this in your automated procedures to check for any Windows 2003 servers and take further actions when needed.

The script is below. It outputs object so you use the pipe for further processing. For information on the possible values for msDS-Behavior-Version check out the new AD Functional Levels page here.

#--------------------------------------------------------------------------------
# Name         : Get-DCMSDSBehaviorVersion.ps1
# Created By   : Michel de Rooij
# E-mail       : michel@eightwone.com
# Date         : 20120307
# Source       : http://eightwone.com
# Version      : 1.0
#
# THIS CODE IS MADE AVAILABLE AS IS, WITHOUT WARRANTY OF ANY KIND. THE ENTIRE RISK
# OF THE USE OR THE RESULTS FROM THE USE OF THIS CODE REMAINS WITH THE USER.
#--------------------------------------------------------------------------------

$RootDSE= [ADSI]'LDAP://RootDSE'
$objSearchRoot= New-Object DirectoryServices.DirectoryEntry( "LDAP://"+ $RootDSE.configurationNamingContext)
$objSearch= New-Object DirectoryServices.DirectorySearcher
$objSearch.SearchRoot= $objSearchRoot
$objSearch.Filter= "(objectClass=nTDSDSA)"
$objSearch.SearchScope = "SubTree"
$Results= @()
$objSearch.FindAll() | ForEach {
    $objItem = $_.getDirectoryEntry()
    $obj= New-Object PSObject -Property @{
        Servername= $objParent = $objItem.psbase.parent.DNSHostName.ToString()
        MSDSBehaviorVersion= $objItem.Get("MSDS-Behavior-Version")
    }
    $Results+= $obj
}
$Results

Note that if you have over 1000 domain controllers, you need to set the $objSearch.Pagesize, e.g. 1000. It may also encounter problems in forests with multiple roots.

Comparing Active Directory Permissions

Posted on January 26, 2011 by Michel de Rooij

Every now and then you might be required to compare Active Directory account permissions. When it concerns one or few accounts, you could do the manual side-by-side comparison using Active Directory and Computers. However, when you need to check multiple accounts this task becomes tedious.

Now you could follow the practice laid out by Exchange fellow Andy Grogan here, generating permissions output using Quest Active Roles and comparing the textual output with a comparison utility like WinMerge or WinDiff. But you can also perform this comparison using PowerShell’s Compare-Object cmdlet, which I’ll show you here.

For this task we’re going to use the Quest AD extensions (Active Roles), which you can download here. Install these extensions on a domain-joined system where PowerShell is already installed. After installation, start the ActiveRoles Management Shell and enter the following, where IdA and IdB are the Identities of the objects you want to compare:

$a= Get-QadPermission <IdA> -Inherited -SchemaDefault
$b= Get-QadPermission <IdB> -Inherited –SchemaDefault

Now $a and $b contain the permission sets of both objects. Next, we’re going to utilize compare-object to compare these two sets. When we use Compare-Object $a $b you get the following output:

Not quite helpful this output but it isn’t unexpected. Since we’re comparing two object sets compare-object generates a result with objects. We can make this more readable by specifying the PassThru parameter so we can post-process these objects, like displaying certain fields using the Format-Table cmdlet, e.g.

Compare-Object $a $b -PassThru | ft SideIndicator,AccountName,Rights,Source,ApplyTo

Presto! The SideIndicator is included to see in which set the attribute is contained, e.g. “<=” means the element is contained in the 1st specified (reference) object and “=>” means its is contained in the 2nd (difference) object.

If you want to include equal objects in the output as well, add the IncludeEqual parameter to the Compare-Object cmdlet.

Active Directory Migration Tool 3.2

Posted on June 20, 2010 by Michel de Rooij

At last, the Active Directory Migration Tool (ADMT) 3.2 was released to public. ADMT can be used to migrate and reorganize objects across in inter-forest (cross-forest) or intra-forest scenarios.

The previous version, ADMT 3.1, dates back to July, 2008 and is supported only on Windows Server 2008, but not R2. With the release of R2 this lead to added complexity because projects needed to introduce a different OS in their environment.

The new 3.2 version of ADMT only runs on Windows Server 2008 R2, but not on earlier versions. As you can also see from the table below, the new ADMT version requires Windows Server 2003 domain functional level in both the source and the target domain:

ADMT Version	OS Support	Source Domain				Target Domain
ADMT Version	OS Support	2000	2003	2008	2008 R2	2000	2003	2008	2008 R2
3.1	2008	YES	YES	YES		YES	YES	YES
3.2	2008 R2		YES	YES	YES		YES	YES	YES

You can download ADMT 3.2 here. The updated ADMT Guide: Migrating and Restructuring Active Directory Domains can be found here.

Note that ADMT uses Password Export Server (PES) which is currently still at version 3.1. Be advised that this version of PES isn’t supported on Windows Server 2008 R2, so I expect an update for PES as well. PES 3.1 can be downloaded here (x64) or here (x86).
